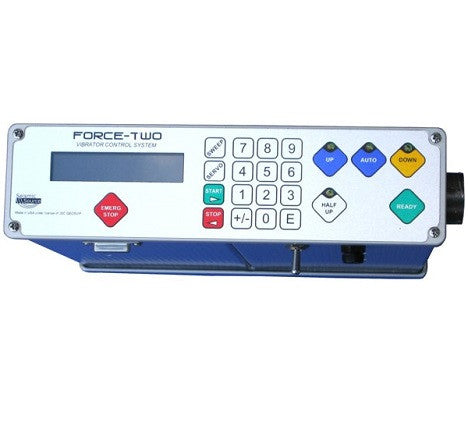

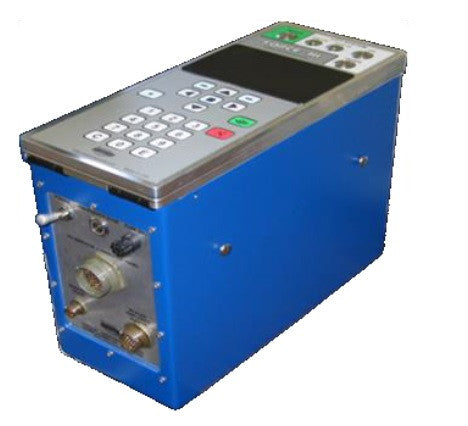

Vibrator Control System - Force II

Force II - Vibrator Control System Features

• State of the Art Phase and Force Control

• Integrated GPS

• 24-bit Vibrator Signature Option (HFVS TM)

• Linear, Non-Linear and Custom Sweep capabilities

• Accurate and Reliable

• Rugged Design

• Vibrator Calibration - Quick and Easy - allows electronics to quickly be switched to a new vibrator without long setup time

• Post Sweep Report - Quality Control report at the end of the sweep. Includes Phase Error, Force Output, GPS and other QC information

• Uses standard 41-pin interface cable compatible with most vibrators

New Features

• Force Two Vibrator Decoder Units - New radio interface and control system allows direct replacement of Vib Pro TM Units

• Force-Two control units can operate in the same vibrator group as Vib Pro TM Unit

• Force-Two generates the same sweep as Vib Pro TM Units

• Force-Two unit uses the same Start Code and PSS type as Vib Pro TM Unit

• Force-Two has the same PPS data as the Vib Pro TM Unit

• Force-Two uses the same Vibrator Wiring as Vib Pro TM Unit

• Force-Two can also use Advance II Start code for more reliable telemetry

Easy to Use Computer Software

• Single program allows complete operation of Force-Two Vibrator Control System

• Radio Similarities are quickly analyzed

• Post Sweep Reports are displayed and stored

• Sweep Library can easily be updated

FORCE-II Vibrator Control System General Specifications

• Operating Voltage: 11-36 VDC

• Power: 36 Watt

• Dimensions: 76 x 305 x 305 mm

• Weight: 4.54 Kg
