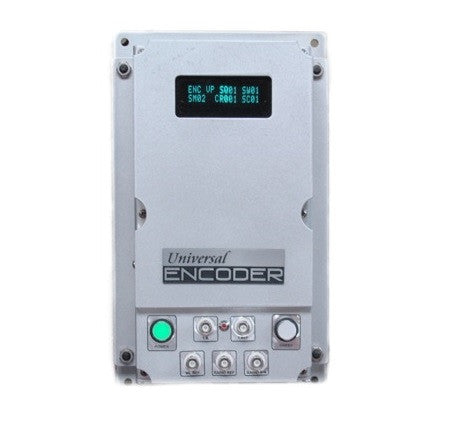

Universal Encoder - UE

The Universal Encoder will control the following units:

• SSC Force Two Vibrator Control Units

• SSC Boom Box Dynamite Blaster Units

• Vib Pro TM Vibrator Control Units

• Shot Pro TM Dynamite Blaster Units

• Shot Pro TM II Dynamite Blaster Units

• SSC Weight Drop Control Units

Source Control Software

Universal control software allows observer to easily switch between seismic sources: vibrators, dynamite, weight drop. Single software program allows the following operation:

• Receives Vibrator PSS information

• Receives Blaster PFS information

• Receive GPS position from Source control units

• Receives Shot Status information from Weight Drop Control Unit

• Receives and Analyzes Radio Similarities

• Sends and Receives Force-Two control parameters

• Sends and Receives Force-Two sweep parameters

• Sends and Receives Recording Trunk information to ARAM, I-O, Sercel, Ascend, VibTech, Geometrics, and other recording systems

FORCE-TWO Universal Encoder Specifications:

• Operating Voltage: 11-36 VDC

• Power: 18 Watt

• Dimensions: 4x6x12"

• Weight: 10 lbs
