High Resolution Versatile Seismic Recording system - DAQLink 3

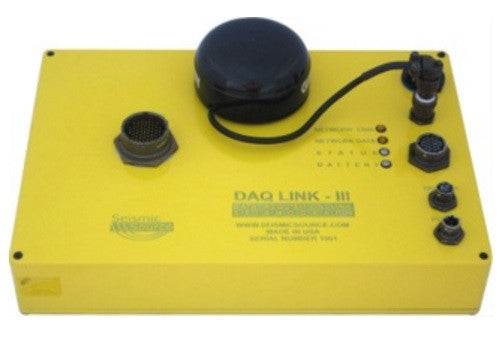

DAQLink 3 High Resolution Versatile Seismic Recording system

The DAQlink III is the third generation of portable seismograph systems. The system can be configured as a stand-alone monitoring system, a refraction system or a distributed seismic reflection system.

The DAQlink III has been designed for temporary or long term installations and can be monitored continuously or periodically, locally or remotely. External clock discipline via GPS Module, VHF/UHF radios or Wire enables usage in any environment.

Field Benefits

Cutting Edge Technology for Data Quality

• Ultra High-Speed 24bit ADC (48,000 samples/sec)

• High Resolution Clock

• Low Noise & Low Distortion Means Better Data

Designed to Produce and Protect Data

• Data Always Stored in Box - No Lost Data

• Offload Data While Recording – No Lost Production

• Better Data Handling for Superior Production

Versatile Operation

• Continuous Recording

• Trigger on Time, Data Event or Trigger Input

• Different Modes for Different Types of Projects

Modular and Stackable

• Combine Units for Additional Channels

• Uses Common GPS Module & Network Connection

• Use "MegaDAQ" Configuration for Maximum Channels in Minimal Space

Multiple Operation Modes

• Operate as Stand-Alone Seismograph - Great for Small Crews

• Multiple Units Operating in Concert - Increases Crews Flexibility

Hardware Benefits

Sturdy Aluminum Construction

• Rugged, Lightweight, "O" Ring Sealed to IP 67

• Threaded Holes for Mounting

• For Permanent Mounting, or Long-Term Deployment

DAQLink 3 Uses

Downhole Recording

• 24 Channel Units Ideal for Shallow Holes with 8 three-Component Geophone Sondes

• Use WiFi network to collect data from multiple wells

Earth Monitoring

• Low Power for Long-Term Use

• Use Cellular Modem for Remote Data Collection

Useful for Every Project

• Engineering Seismic

• Oil & Gas Exploration

• MicroSeismic Frac Monitoring

• Strong Motion Detection and Monitoring

A MegaDAQ consists of multiple DAQ3-24s connected via a network. This can be either a wired or wireless network. The network both controls the seismographs and collects the seismic data in real time.

DAQlink 3 in the Field

Includes VibraScope Software

Functions:

• Configures DAQlink III for Acquisition

• Monitors Seismograph Operation

• Offloads and Evaluates Data

Features:

• Data Display

• Analysis – Amplitude & Phase Spectra

• RMS Noise and Signal Graphs

Expansion

• For larger systems, DAQlink III Seismographs are compatible with the full line of iSeis Sigma Field Software, including Source Link & Sigma Observer.

DAQLink 3 Seismic Recording System Specifications
