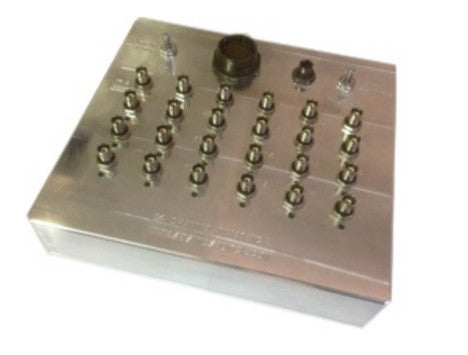

Accelerometer Array - Vibrator QC System
Supplied By: Seismic Source Company, USA
Rs. 0.00
Accelerometer Array - Vibrator QC System
-
24-channel input interface for DAQLink-III acquisition system (23 for accelerometers and one for True Reference)
-
Computes accelerometer weighted sum using input array
-
Controlled state of current supplies for external accelerometers
-
LED status indication of every accelerometer input
-
Differential outputs to the acquisition system
-
Input channel impedance of 1 Mohm
-
Bandwidth: 0.1 - 5000 Hz
-
Crosstalk: -100 dB
-
Phase tolerance of channels: ±0.2 deg
-
10 mA current supply for every accelerometer channel
-
Max input signal: ±10 V p-p (True Reference), ±2.8 V p-p (Accelerometer input)
-
Power supply: 9 - 18 V
