Pie Gauge

Key Features and Application

Application

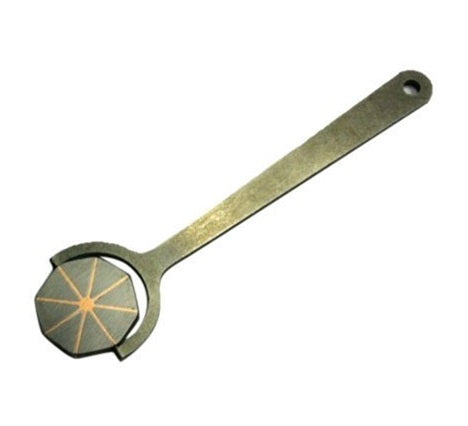

In Magnetic Particle Inspection (MPI), a Pie Gauge is a specialized tool used to ensure the effectiveness of the magnetic field during the inspection process. This tool is essential in verifying that the magnetic field is of sufficient strength and proper orientation to detect surface and slightly subsurface discontinuities in ferromagnetic materials.

Key Features

1. Verification of Magnetic Field: The Pie Gauge is designed to simulate a variety of surface defects, helping inspectors ensure that the magnetic field is correctly detecting flaws.

2. Surface Defect Simulation: The gauge has a series of notches, slots, or artificial defects that mimic real-world flaws. These are used to validate the magnetic particle testing process.

3. Ease of Use: It is typically a small, flat, circular metal disc with precise geometric features, making it easy to handle and use during inspections.

How it Works

1. Application of Magnetic Field: The Pie Gauge is placed on the surface of the material being inspected

2. Magnetic Particle Application: Magnetic particles (either dry or suspended in a liquid) are applied over the Pie Gauge.

3. Observation: As the magnetic field is applied, the particles gather at the areas of flux leakage (notches or artificial defects on the Pie Gauge). This visibility confirms that the magnetic field is correctly oriented and strong enough to detect real defects in the material under inspection.

Benefits

• Validation Tool: Ensures that the magnetic particle inspection process is correctly identifying potential defects, enhancing the reliability of the inspection.

• Quality Control: Assists in maintaining high standards of inspection quality by providing a repeatable and standardized method for verifying the effectiveness of the magnetic field.

• Cost-Effective: Offers a low-cost solution for ensuring the accuracy and reliability of MPI processes.
